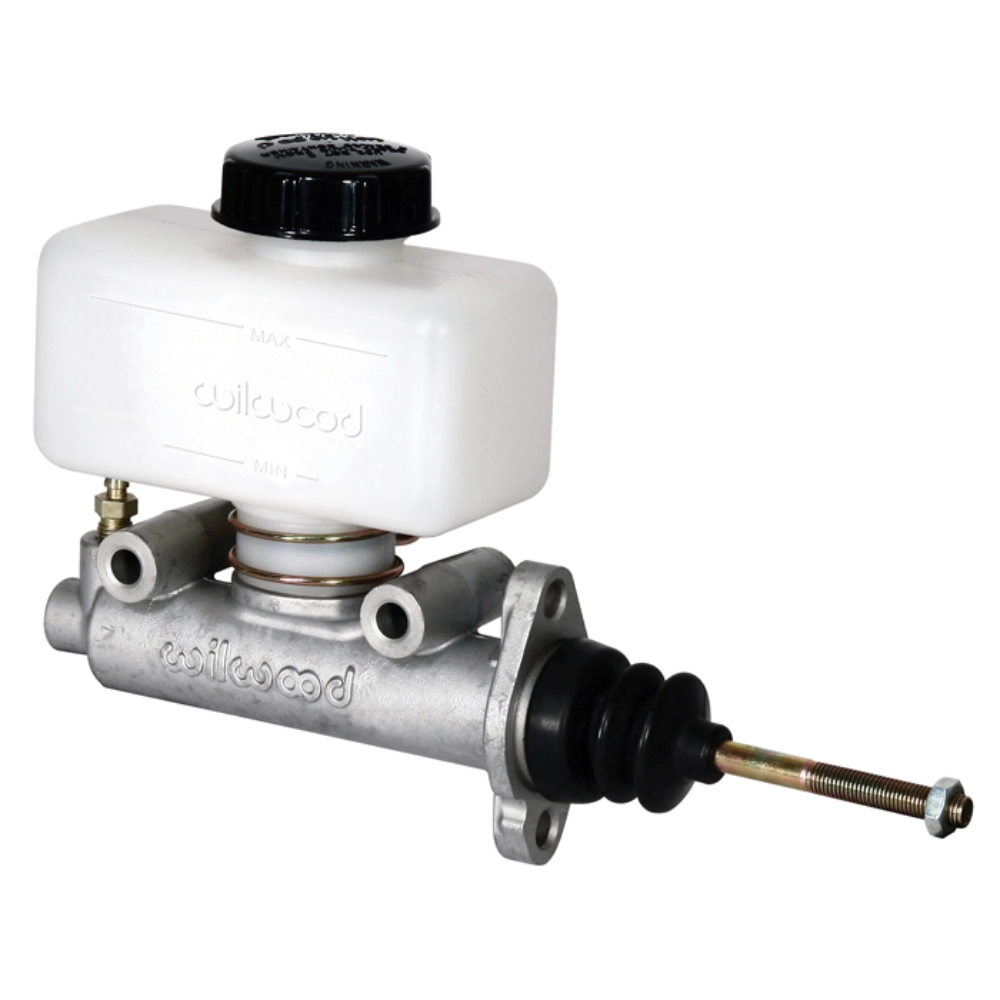

Wilwood Combination Remote Master Cylinder WIL260-3378
$103.46
1in Bore, 0.780in² Area, 1 Stroke, 0.78cuin Volume
Out of stock
Same Day Shipping On Orders Made Before 2PM EST (Monday-Friday)
ASK AN EXPERT
We would love to help you find the right part.
Call (315) 934-4120 or email us at [email protected]
Combination Remote Master Cylinders offer six different bore sizes and four different installation configurations that are available with this master cylinder kit. Precision machined from high strength aluminum, this kit includes both small and large size reservoirs which can be mounted directly on the master cylinder or remotely mounted for more convenient service access. Standard mounting bolt hole configurations provide easy applications for racing and off road vehicles, specialty cars, recreation and industrial vehicles.
| Master Cylinder Dimensions | |
|---|---|
| Bore Size | 1.00" |
| Area (in²) | 0.780 |
| Stroke | 1.00 |
| Volume (cu in) | 0.78 |
| Master Cylinder Description | |
| Type | Single Outlet |
| Outlets | 1 |
| Material | Aluminum / Plastic |
| Finish | Bare |
| Reservoir | |
| Res Type | Remote |
| Res Size (oz) | 10.7 or 4.0 |
| Res Size(cu in) | 19.3 or 7.2 |
| Rate | |
| Additional Dimensions | |
|---|---|
| Overall Length(in) | 9.87" |
| Flange to End Length (in) | 5.56" |
| Inlet Size (in) | 1.35" |
| Inlet Fit (in) | 3/8" Hose |
| Outlet Size 1 (in) | 3/8-24 |
| Outlet Fit 1 (in) | 3/8-24 IF Female |
| Outlet Size 2 (in) | |
| Outlet Fit 2 (in) | |
You may also like…
-

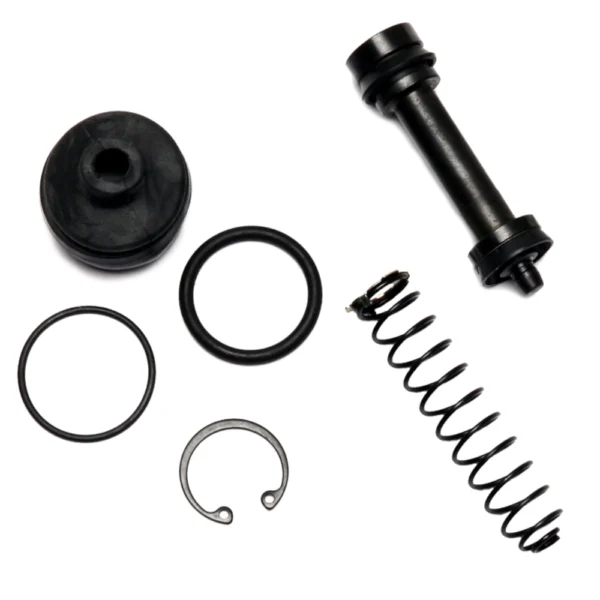

Wilwood Combination Remote Master Cylinder Rebuild Kit WIL260-3883
$32.441in Bore
-
Wilwood Compact Remote Flange Mount Master Cylinder WIL260-10375
$106.641in Bore x 0.78in² Area x 1.12 Stroke x 0.87cu in Volume
-
Wilwood Compact Remote Flange Mount Master Cylinder WIL260-10374
$106.647/8in Bore x 0.6in² Area x 1.12 Stroke x 0.67cu in Volume
-
Wilwood Electric Brake Shut-Off Valve WIL260-9921
$197.571/8-27 NPT Inlet – 3/8-24 IF Female
-

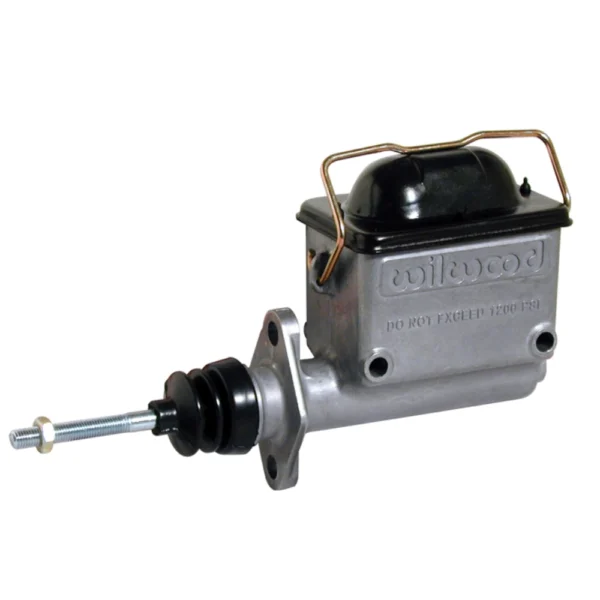

Wilwood High Volume Master Cylinder WIL260-6764
