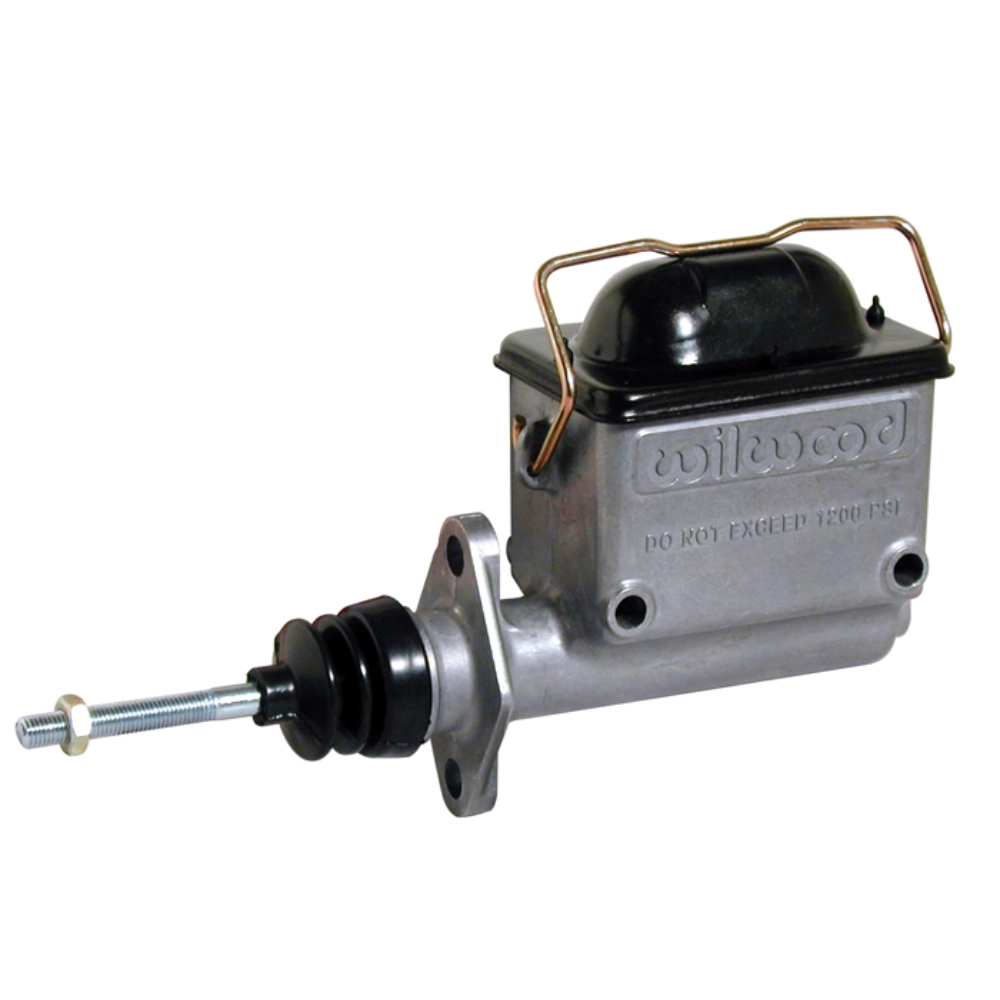

Wilwood High Volume Master Cylinder, Aluminum, 3/4in Bore WIL260-6764
$76.58
High Volume Master Cylinder
Only 1 left in stock
Same Day Shipping On Orders Made Before 2PM EST (Monday-Friday)
ASK AN EXPERT
We would love to help you find the right part.
Call (315) 934-4120 or email us at [email protected]
High Volume Master Cylinder - Product Summary
Wilwood High-Volume Aluminum Master feature high pressure die-cast bodies from high-grade aluminum. Wilwood. High-Volume Master Cylinders have the highest fluid capacity of any integral reservoir design. With a total capacity of 8.2 ounces, there is at least 26% more fluid volume than other brands. . With 1-7/16" of piston travel, it offers extra margin when used with large piston calipers. Heavy duty internal springs provide fast retraction. Formed steel lids with bellows type gaskets keep the moisture out. Wilwood master cylinders use common dimensions for flange or side mounting and a 1/8-27 NPT outlet port.
Master Cylinder Dimensions
Bore Size 3/4"
Area (in²) 0.440
Stroke 1.43
Volume (cu in) 0.62
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum / Steel
Finish Bare
Reservoir
Res Type Integral
Res Size (oz) 8.2
Res Size(cu in) 14.80
Rate
UPC Number
UPC 889545067859
You may also like…
-
Wilwood Brake Pressure Gauge (WIL260-0966)
$88.15WIL260-0966
Brake Pressure Gauge, 0-1500 psi, Mechanical, Analog, 2 in Diameter, 1/8 in NPT Port, White Face, Each
-
Wilwood Brake Rotor Bolt Kit 5/16-18in Thread x 1.00in Long, 8 pack – WIL230-8390
$19.33WIL230-8390
Brake Rotor Bolt, 5/16-18 in Thread, 1 in Long, Washers Included, Hex Head, Steel, Black Oxide, Set of 8
-
Wilwood Compact Remote Flange Mount Master Cylinder 1″ Bore 0.78″ Area (WIL260-10375)
$106.64Bore Size – 1.00″
Area (in²) – 0.780
Stroke 1.12
Volume (cu in) – 0.87
-
Wilwood Compact Remote Flange Mount Master Cylinder 7/8″ Bore 0.6″ Area (WIL260-10374)
$106.64Bore Size – 7/8″
Area (in²) – 0.600
Stroke 1.12
Volume (cu in) – 0.67
-

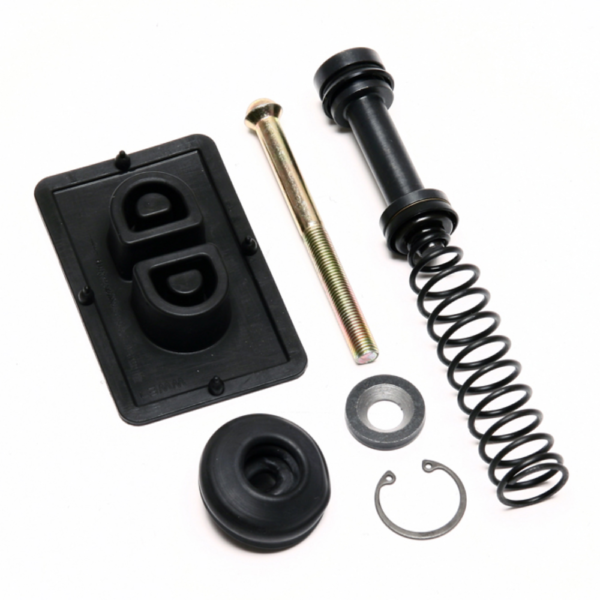

Wilwood HVM Master Clyinder Rebuild Kit WIL260-6900
