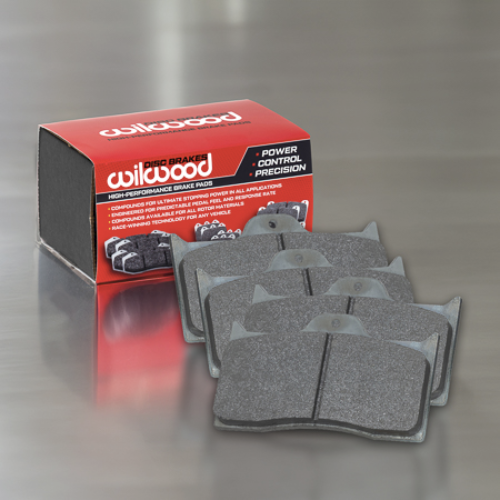

Wilwood BP-20 Pads #7112 – WIL150-9413K
$56.16
Pad Dimensions
Thickness(in) – .49
Area(in²) – 6.36
Volume(in³) – 2.1
Bedded – N
In stock
Same Day Shipping On Orders Made Before 2PM EST (Monday-Friday)
ASK AN EXPERT
We would love to help you find the right part.
Call (315) 934-4120 or email us at [email protected]
| Attributes | |
|
Product Line
|
Street Performance / Racing Pads
|
|
Compound
|
BP-20
|
|
Hawk Pad Shape
|
HB100
|
|
Wilwood Pad Shape
|
7112
|
|
Performance Friction Pad Shape
|
7752/12
|
|
Maximum Operating Temperature
|
1100 Degrees Fahrenheit
|
|
Peak Friction Rating
|
0.55
|
|
Cold Torque
|
Medium
|
|
Hot Torque
|
Medium-High
|
|
Wear Rate
|
Medium
|
|
Dust Rating
|
Low to Moderate
|
|
Pad Noise Rating
|
Low to Moderate
|
|
Pad Width Inner (in)
|
3.96 in
|
|
Pad Width Inner (mm)
|
101 mm
|
|
Pad Height Inner (in)
|
2.38 in
|
|
Pad Height Inner (mm)
|
60.5 mm
|
|
Overall Thickness Inner (in)
|
0.49 in
|
|
Overall Thickness Inner (mm)
|
12.4 mm
|
|
Pad Width Outer (in)
|
3.96 in
|
|
Pad Width Outer (mm)
|
101 mm
|
|
Overall Thickness Outer (in)
|
0.49 in
|
|
Overall Thickness Outer (mm)
|
12.4 mm
|
|
Hardware Included
|
No
|
|
Number of Pads Included
|
4
|
|
Universal
|
Yes
|
|
Quantity
|
Kit
|
