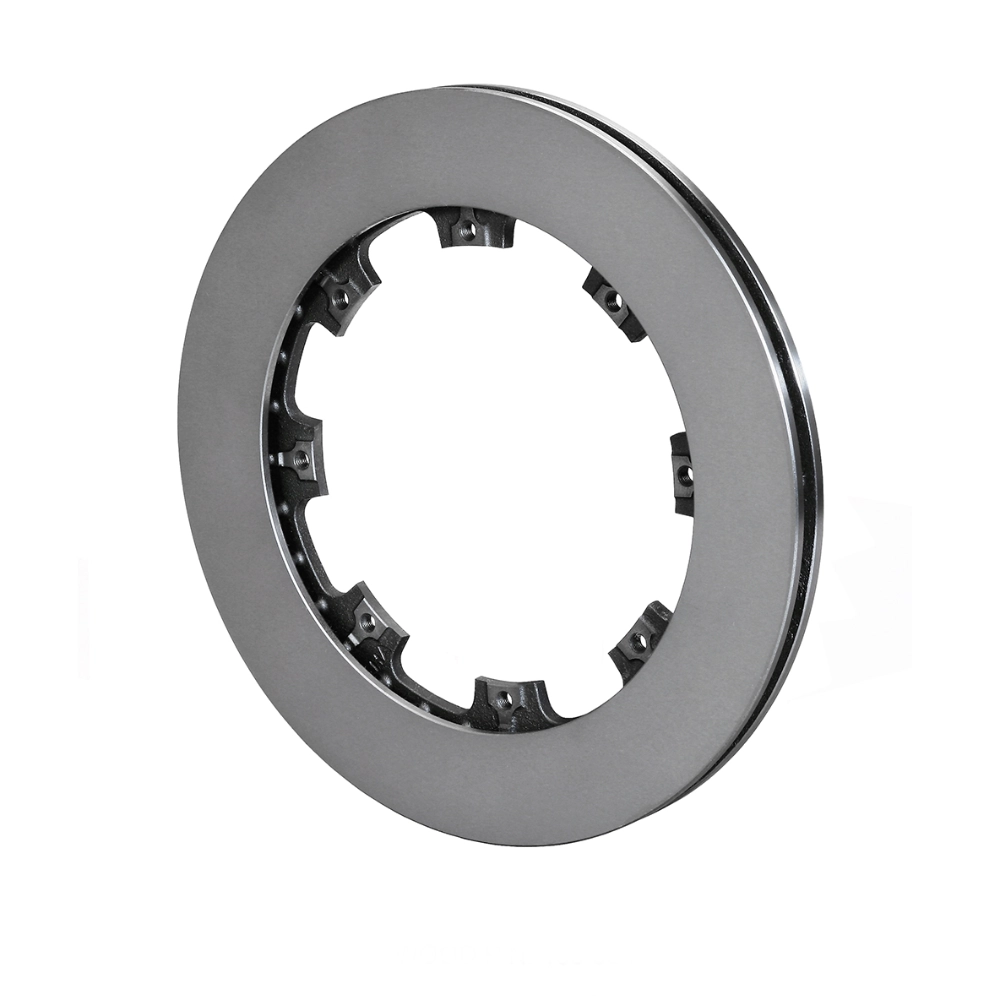

Wilwood Ultralite HP 32 Vane Rotor WIL160-5844
$129.25
12.19in Dia. X .81in Width – 8 x 7.62in Bolt Circle
In stock
Same Day Shipping On Orders Made Before 2PM EST (Monday-Friday)
ASK AN EXPERT
We would love to help you find the right part.
Call (315) 934-4120 or email us at [email protected]
Ultralite HP 32 Vane Rotor
Ultra-Light ULHP-32 straight vane rotors provide an excellent balance of efficient cooling and lower rotating mass on hard braking dirt tracks or rear axle service on pavement cars. UL rotors are cast from premium grade, long grain carbon iron for long wear, high thermal stability, and resistance to distortion. ULHP-32 rotors offered the added performance and smoother operation of precision turned faces with less than .001" variation in flatness, parallelism, or run-out.
Rotor Dimensions
Width (in) 0.81
Diameter (in) 12.19
Mount Side Non_Direct
Rotor Design
Material Iron
Vane Count 32 V
Weight(Lbs) 8.80
Rotor Style & Finish
Type ULHP
Style Plain Face
Surface Finish Plain
Rotor Upgrades
Burnished No
Balanced No
UPC Number
UPC 889545039740
Additional Rotor Dimensions
Rotor Bolt Circle (in) 8 x 7.62
Rotor Mount Hole Size (in) 5/16-24
Lug ID / Registration (in) 7.13
Far Side Inside Diameter (in) 8.50
Offset Dimension (in)
