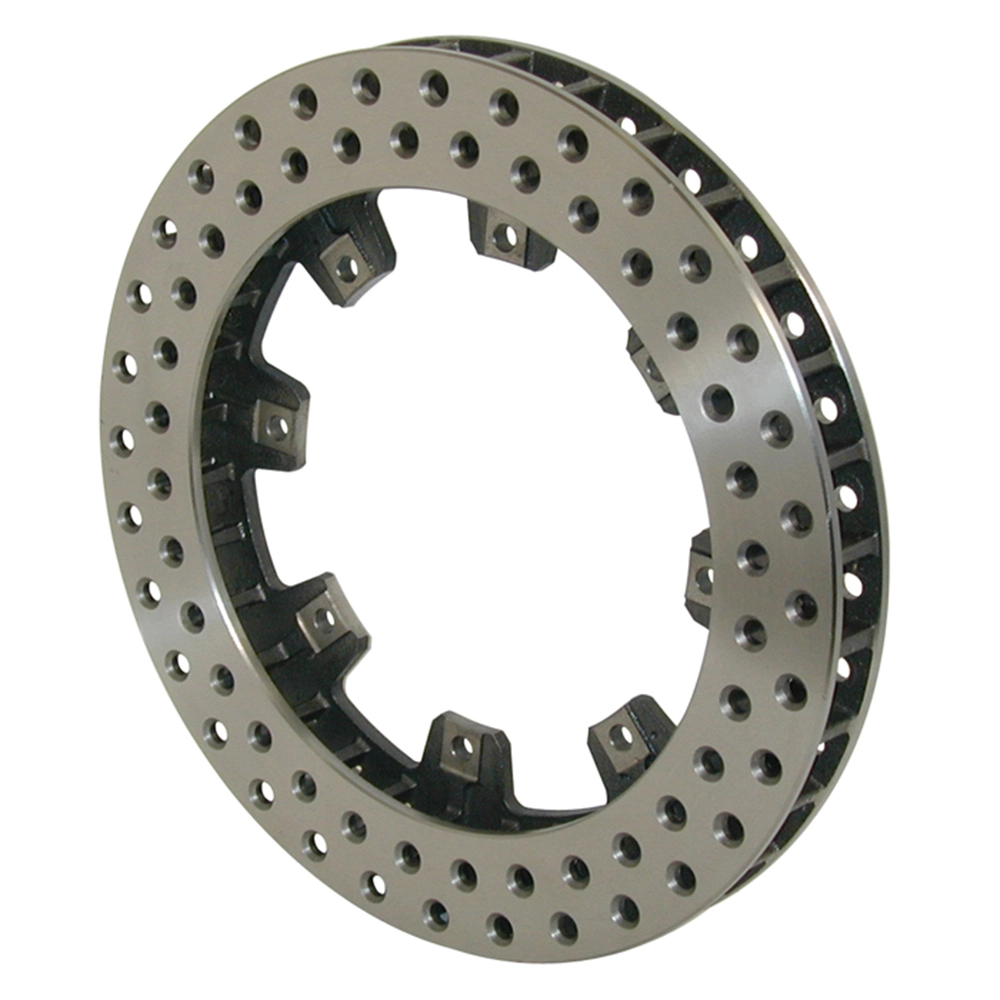

Wilwood Ultralite 32 Vane Rotor Drilled WIL160-5865

Ultralite 32 Vane Rotor Drilled

When it comes to rotors, racers are constantly searching for the ultimate balance between the lowest weight and the ability to effectively manage heat. Decreased rotating weight in the drive line provides quicker deceleration under braking and quicker acceleration out of the corners. Lower weight also benefits handling with improved spring and shock control over the unsprung suspension mass. Wilwood's ULD-32 drilled iron rotors provides effective lightweight options for sprints, late models, modifieds, and other competition applications that race in low to medium temperature ranges.

Rotor Dimensions

• Width (in) 0.81
• Diameter (in) 12.19
• Mount Side Non_Direct

Rotor Design

• Material Iron
• Vane Count 32 V
• Weight(Lbs) 8.00
• Rotor Style & Finish Type ULD Style Race Drilled Surface
• Finish Plain

Rotor Upgrades

• Burnished No
• Balanced No

UPC Number

• UPC 889545039825

Additional Rotor Dimensions

• Rotor Bolt Circle (in) 8 x 7.00
• Rotor Mount Hole Size (in) 0.326
• Lug ID / Registration (in) 6.38
• Far Side Inside Diameter (in) 8.56
• Offset Dimension (in)
